Half Coil Jacketed Glass Lined Reactor

Capacity:1000 to 40000 Liters; 40000 to 50000 Liters (Customize). Half pipe coiled/Limpet/Semi-coil/Spiral jacket which welded on the outer wall of the glass lined reactor vessel for zone heating/cooling through by medium, special for thermal oil.

Send Inquiry

Description

Half pipe coiled jacket type glass lined reactor has semi-coil/limpet/spiral type jacket that welded on the outside wall of the glass lined reactor body which be use to pass though the cooling/heating medium to control reacting temperature by heating exchange. Different from U type jacket, the flow rate of cooling/heating medium in this type jacket is 2-3 times faster, and no problem such as the heating transfer medium is easy to form disturbance flow, short circuit, nonuniform heat exchange and so on. Also not easy scaling and corrosion by cooling water for the high speed flow through the upper-lower path. But, considering the influence of pipe group, the effect of heat transfer of half pipe-coiled jacket is more remarkable for the liquid heating or cooling medium, the U type jacket is better during use steam heating.

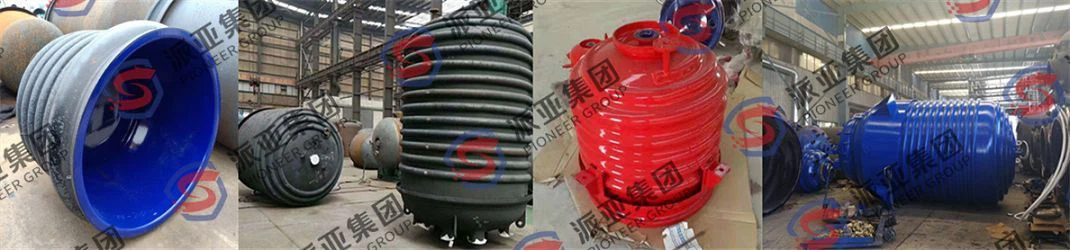

Fig-1 Half Coil Jacketed Glass Lined Reactor(001)
