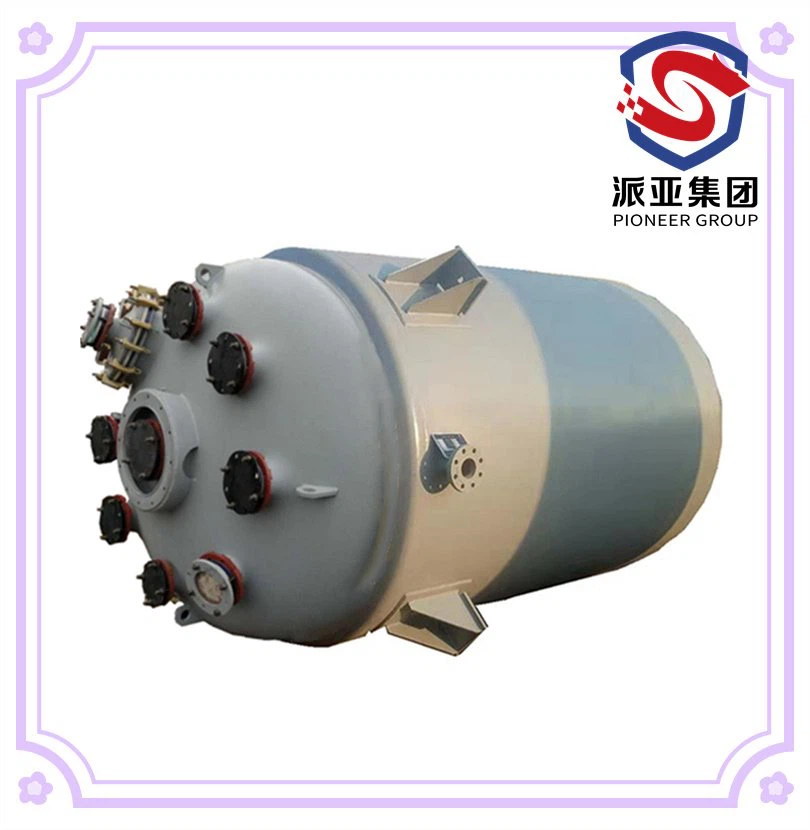

Q Type Glass Lined Reactor
Capacity: 1000 to 40000 Liters; 40000 to 50000 Liters (Customize). Design and manufacture standard: GB/T25025-2010, GB/T25026-2017. Full closed-welded structure with no bigger opening on the head but it should be assembly by removable type agitator.

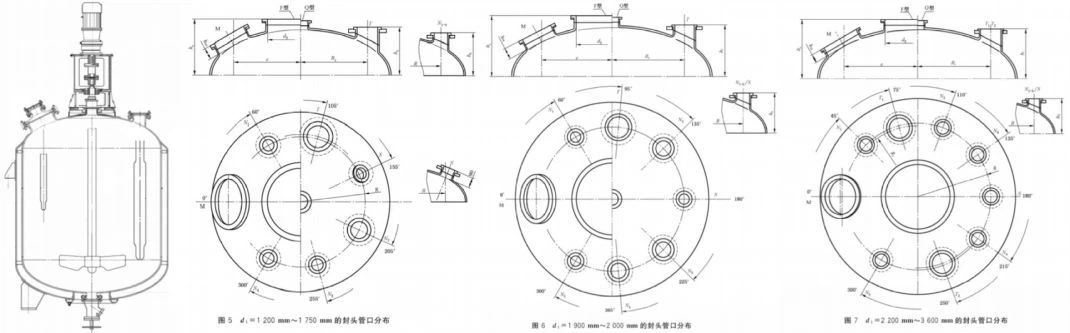

Q type glass lined reactor has a small size nozzle on head cover that only allowed agitator shaft pass in, the removable blade of agitator into the vessel body by though manhole and then assembly/locked onto agitator shaft by cooling assembly method. It is design and manufacture according to the Chinese national standard/ASMEstandard. Heating and/or cooling method is with a u type jacket or outer-side semi-coil/limpet type jacket through by medium of steam, water or thermal oil.

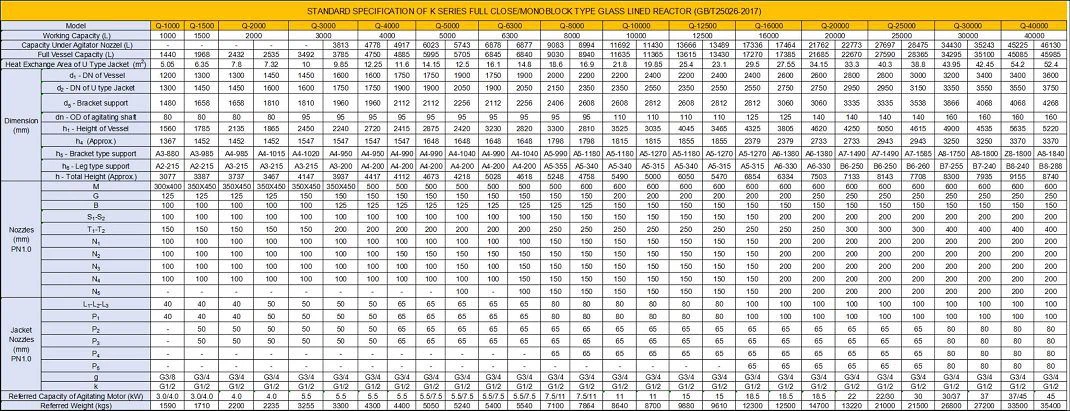

PRODUCT SPECIFICATION
ACCESSORIES FOR GLASS LINED REACTOR

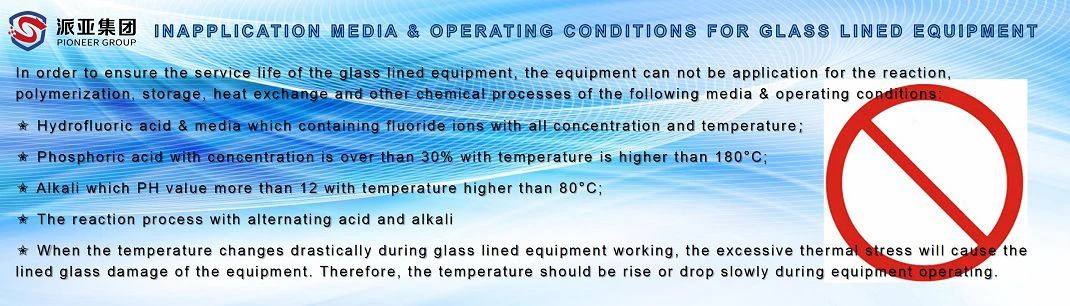

INAPPLICATION MEDIA & OPERATING CONDITIONS FOR GLASS LINED EQUIPMENT
CAUTION ITEMS DURING MAINTENANCE AND OPERATING OF GLASS LINED EQUIPMENT

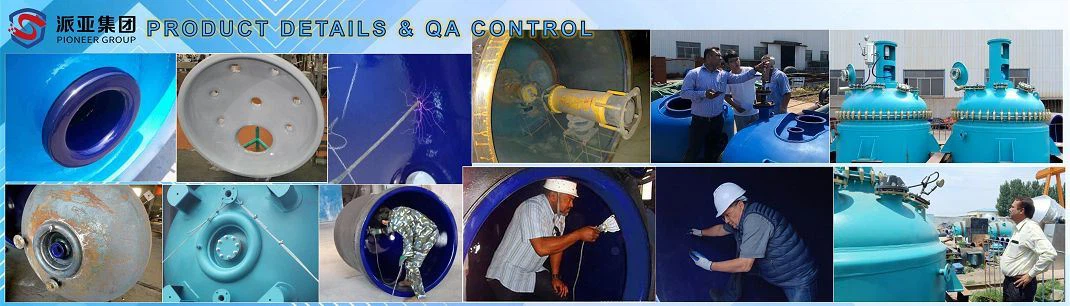

MAJOR FACTORY INSPECTION
◆Mechanical performance test for steel substrate
◆Tensile strength test for clamps
◆Anti-corrosion performance test for glass lining/enamel with test bar or block
◆Weld joint inspection with Head: RT-100% and shell: RT-20%
◆Nozzles position and flatness inspection
◆Visual inspection for the lined glass layer after firing
◆Lined glass thickness detection after firing
◆20kV spark test for the lined glass layer after firing
◆Hydraulic test for Jacket and Vessel
◆No-load running rest and working test with water to test the performance of agitating & electric control system
◆10kV spark test and finish inspection for the lined glass layer before delivery
CERTIFICATE
OUR PARTNER
VISITORS AND EXHIBITION

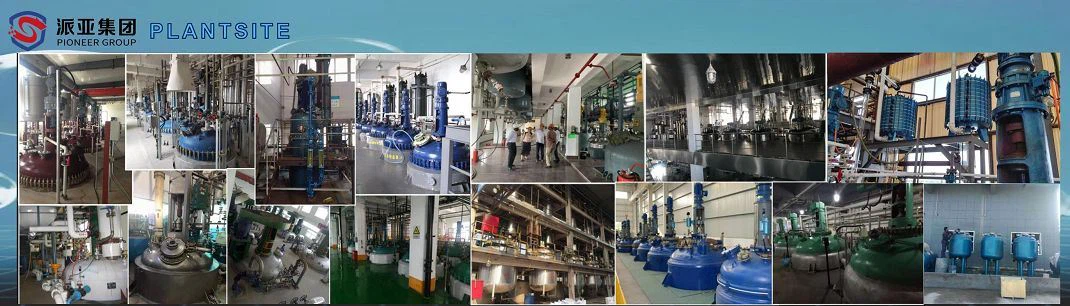

PLANTESITE
EXPORTS
FAQ
1. For we can quote accurately and supply quality products, please provide technical data along with your inquiry as such:
1) Required design and working pressure, temperature of equipment
2) The corrosion performance or PH value of working medium (if have)
3）Connect flange standard
4) Power supply - Voltage, Frequency, Explosion proof and protection class according with field application
5) Equipment operating ambient - Installation site(Room/outdoor installation, heated/unheated room), class of hazardous and fire hazardous area, climatic version and category of location
2. Our MOQ is one set of each equipment.
3. Our port of loading is Qingdao seaport, P.R.China
4. Our delivery time is from 60 to 120 days after we get the 30% deposit payment and confirm the diagrams for different equipment.
5. Our product warranty time is one year from delivery.
6. Our common payment term is 30% of contract amount by T/T advanced as deposit, balance 70% by T/T or L/C at sight.
7. If your need the certificate that issue by a third party, please let us know.
