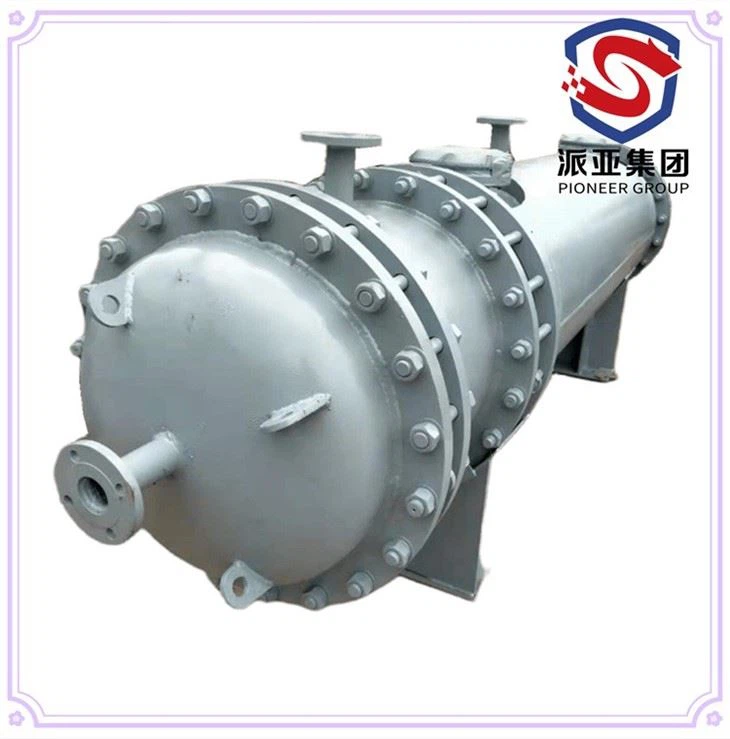

Glass Lined Shell and Tube Heat Exchanger
Heat exchange area: 0.5 to 500 m2, glass lined shell and tube heat exchanger is a excellent process equipment that apply with corrosion medium with more cheaper cost.
Glass lined shell and tube heat exchanger offers a roster of capabilities to meet high-corrosion, high pressure, full vacuum, high temperature process needs effectively. It can cope with the most stringent demands for product purity, process versatility and ease of maintenance and widely used in chemical, pharmaceutical, pesticide, dyestuff, food and other industries. It can replace expensive metal, such as titanium, nickel, tantalum, hastelloy, alloy materials and so on.
There have two typical designed structure for glass lined shell and tube heat exchanger:
One is based on the traditional tube-shell design with double fixed tube plates like other metal type heat exchanger. This type glass lined heat exchanger consists of shell/body, glass lined tube bundle, both-side lids/heads, baffle, double tube plate, seal system& connected flange.Additional heat exchange area can be created with a jacket around the heat exchanger shell. It has simple and compact structure in lower cost.
Another structure design is a single tube plate with plug-in type. The glass-lined heat exchanger tubes are fastened individually to a tube plate, and then plug in a shell/vessel integrally. This type glass lined heat exchanger consists of shell/body, middle shell, lid/head, glass lined tube bundle, introduction pipe bundle, baffle, tube plate, seal system& connected flange. Additional heat exchange area can be created with a jacket around the heat exchanger shell. Features of this structure is easy to assembly and maintenance, and the glass-lined tubes can be replaced individually if the glass on one of them is damaged.
PRODUCT SPECIFICATION
MANUFACTURE PROCESS
CERTIFICATE
OUR PARTNER
VISITORS AND EXHIBITION
HIGH PERFOMANCE GALSS LINING
EXPORTS
INAPPLICATION MEDIA & OPERATING CONDITIONS FOR GLASS LINED EQUIPMENT
FAQ
1. For we can quote accurately and supply quality products, please provide technical data along with your inquiry as such:
1) Required design and working pressure, temperature of equipment
2) The corrosion performance or PH value of working medium (if have)
3) Connect flange standard
4) Equipment operating ambient - Installation site(Room/outdoor installation, heated/unheated room), class of hazardous and fire hazardous area, climatic version and category of location
2. Our MOQ is one set of each equipment.
3. Our port of loading is Qingdao seaport, P.R.China
4. Our delivery time is from 90 to 120 days after we get the 30% deposit payment and confirm the diagrams for different equipment.
5. Our product warranty time is one year from delivery.
6. Our common payment term is 30% of contract amount by T/T advanced as deposit, balance 70% by T/T or L/C at sight.
7. If your need the certificate that issue by a third party, please let us know.
